Handheld Spectrometer - Biora UPRtek PG200N

The Handheld Spectrometer PG200N by UPRtek provides plant reference spectrum for users to compare and compensate the necessary light wavelength required by each particular plant. Utilising the PG200N will accelerate plant growth, flowering and vegetation.

It is ideal for use across the following applications:
• Plant growth facilities
• Floriculture
• Algae culture
• Nurseries
• Greenhouses

PG200N HANDHELD SPECTRAL PAR METER

Product Enquiry

Handheld Spectrometer Form

Handheld Spectrometer Form

"*" indicates required fields

Name*

Measurement Options

PG200N handheld spectral par meter minearc 248x300 1

Standalone

Spetrometer Measurement PC via Type C Cable 248x300 1

PC via Type C Cable

Spetrometer Measurement APP via Bluetooth 246x300 1

App via Bluetooth

Features

The Biora UPRtek PG200N Spectrometer is a professional plant light detector embedded with PAR reference spectrum; allowing users to identify if their light spectrum configuration meets required plant absorption levels. Standalone
  • JIS AA Class and DIN B Class compliant
  • IP66 rated water repellent sensor
  • 350-800 nm wavelength range
  • Auto dark feature, ensuring reliability and precision of measurement
  • Customisable PPFD/PFD range
  • G sensor technology; reducing artificial measurement error
  • User-friendly HMI with customisable menu
  • Multiple measurement options, including standalone, PC via C cable or via bluetooth
  • In-built data logging

Operation Modes

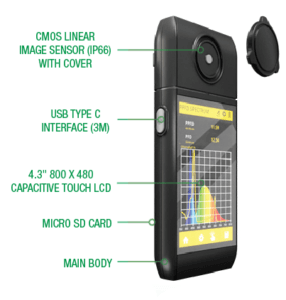

A multitude of operation modes are available on the Biora URPtek PG200N, including auto-dark feature, which allows for reliable and precision reading of measurements. The intuitive HMI also has a customisable menu, taking ease of use to the next level. PG200N handheld spectral par meter operation modes minearc
  • Basic Mode: CCT / CRI / LUX / λP / i-Time
  • Spectrum Mode: Visible light spectrum
  • PPFD Mode: PPFD / PFD / PFD-B / PFD-G
  • PPFD Spectrum Mode: Visible light spectrum
  • CIE Mode: CIE1931 chromaticity / CIE1976 chromaticity
  • Logging Mode: Continues measuring
  • Browsing Mode: Review historical data and save to the SD card
  • Option Mode: Other set-up items

Specifications

Wavelengh Range 350-800nm
Touch LCD 4.3″ capacitive
Cosine Correction Meets JIS AA and DIN B ?
Dark Mode Auto
App Connection Bluetooth & USB Mode + PC connection
I/O Micro SD Card (SD 2.0, SDHC/up to 32G) / Type C / Bluetooth 3.0 and 4.0 compatible with iOS and Android
Measurement Range 1. 70 ~ 150,000 lx 2. 0.5~1,000 W/m2 (Irradiance) 3. 1~3,000  µmol/(m2*s) (PPFD)
Nitric Oxide (NO) 1 year ?
Illuminance Accuracy* ±5%
Illuminance Repeatability* 0.2%
Colour Accuracy* ±0.0025 in CIE 1931 x,y
Colour Repeatability* 0.0005 in CIE 1931 x,y
CCT Accuracy* ±2%
CRI Accuracy @ Ra* ±1.5%
Measuring Modes PPFD Mode PPFD Spectrum Mode (Including reference spectrum – Chlorophyll A, Chlorophyll B, Beta-carotene, Phytochrome A red, Phytochrome A far red) Basic Mode Spectrum Mode CIE 1931/1976 Chromaticity Coordinates Logging Mode Browser Mode Grid Mode Compare Mode Option Mode
Display languages English/ Traditional Chinese/ Simplified Chinese/ Japanese/ Spanish/ German/ French/ Italian/ Russian
Weight 280 g ± 10 g
Dimensions 190 x 81.7 x 29.5 mm (H x W x D)

*1:Input source must be a stable light source. |  *2 :Temperature 23±2℃ and relative humidity 50% or less.  |  *3:Input the 550nm monochromatic light and measure the stray light ratio at 550nm ± 40nm.  |  *4:It can be connected to mobile phones and tablets.  |  *5:MSC- Mass Storage Class.  |  *6 : Only sensor, not the whole body

User Manual
